RB1530 Portable CNC flame cutting machine is a kind of cutting equipment with high efficiency and energy saving. It is a kind of numerical control cutting machine with light weight and economic price. It is suitable for cutting steel plates of various thicknesses and can be equipped with plasma cutting.

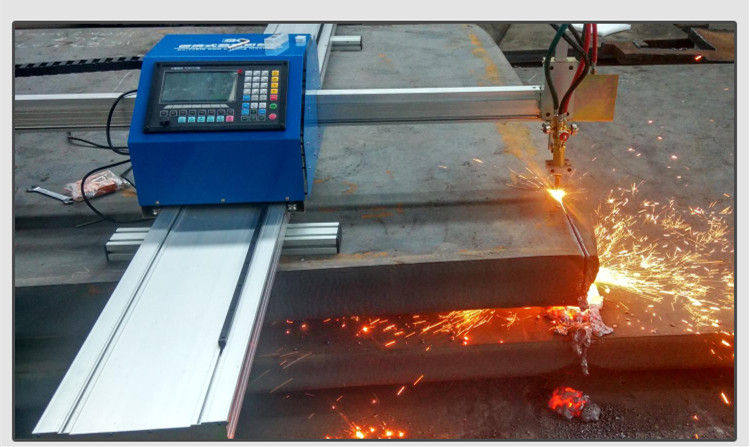

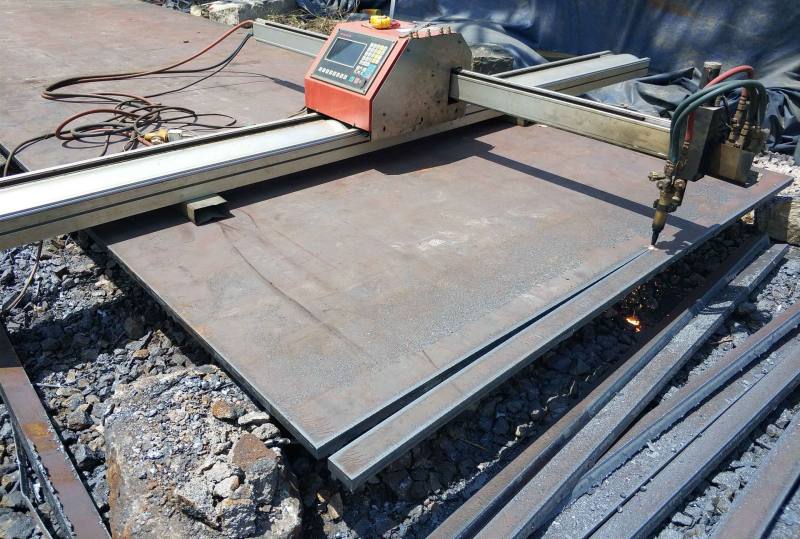

RB1530 Portable CNC flame cutting machine
  • RB1530 Portable CNC flame cutting machine is a kind of cutting equipment with high efficiency and energy saving. It is a kind of numerical control cutting machine with light weight and economic price. It is suitable for cutting steel plates of various thicknesses and can be equipped with plasma cutting.

    Portable cnc plasma cutting machine-3 (1).jpg    cnc flame cutting machine .jpg

    plasma cutting steel sample (26).jpg    plasma flame cutting steel sample (25).jpg

    RB1530 Portable CNC flame cutting machine features


    1.Economical and practical, especially for small and medium-sized enterprises;

    2.Small volume, light weight, easy to move, no occupying fixed site;

    3.Preset graphics database, can store over 1000 cutting program files;

    4.Motors,drives,electromagnetic valve, and other important components, all use well-known brands at home and abroad;

    5.Reserve plasma cutting function interface, support for plasma cutting;

    6.Smart design, can be moved everywhere you need.

  • Portable CNC flame cutting machine parameters

    Model

    RB-1530

    Working Voltage

    AC 220V , 50HZ

    Working Size

    1500mm*3000mm

    Length of Crossbar

    1800 mm

    Length of Longitudinal   Guide

    3500 mm

    Max Cutting Speed

    10000mm/min

    Cutting Thickness

    0-200mm

    Precision

    ±0.01mm

    File output mode

    USB interface

    Weight

    200 KGS


  • RB 1530 portable CNC flame cutting machine


    Applicable Materials:

    carbon steel

    Applicable to the following industries:

    Automobiles, locomotives, pressure vessels, chemical machinery, nuclear industry, general machinery, construction machinery, steel structures, ships, textiles, petroleum
